SoundMat (5) Sensor Principles and Design

1.1 Sensing principle#

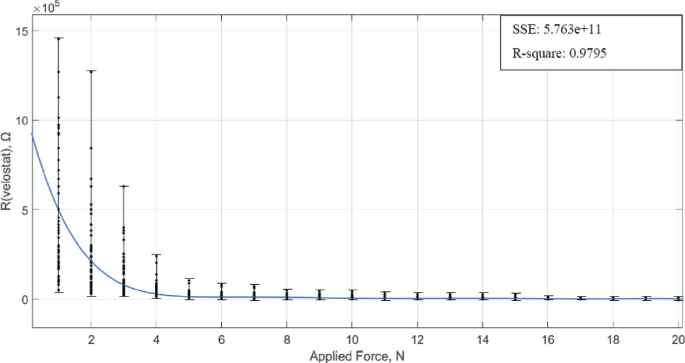

SoundMat sensing is based on the piezoresistive effect. We use Velostat—carbon-filled polyethylene film that looks like black paper. With no pressure, carbon particles are far apart, few conductive paths, high resistance. Under pressure the film compresses, particles move closer, more paths form, resistance drops sharply. More pressure → lower resistance.

So we sense pressure by sensing Velostat resistance. Read resistance → know where something is and roughly how heavy it is.

(Fig.¹)

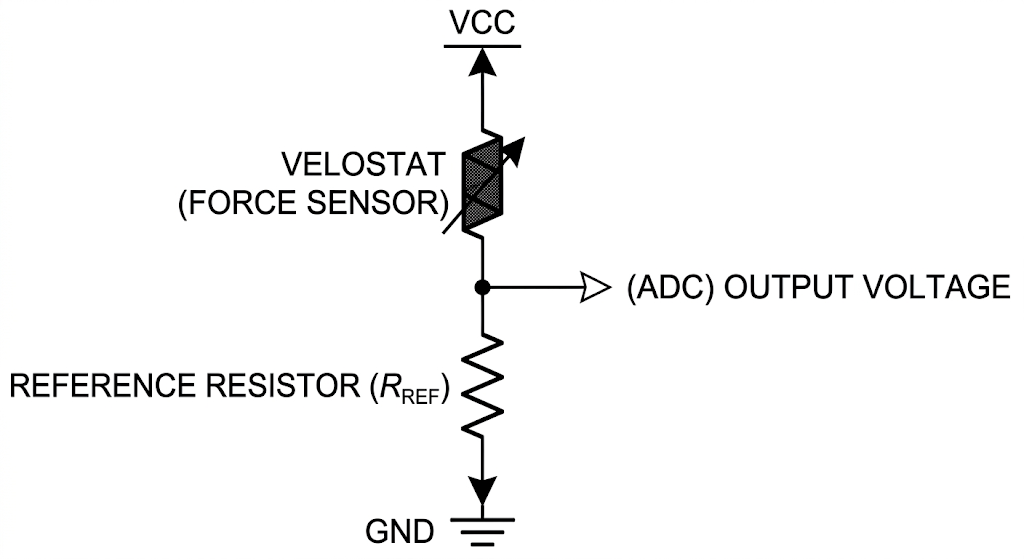

A typical sensing circuit (by Nano Banana):

Read $V_{out}$ with an ADC to infer $R_{sensor}$, hence pressure.

For a 2D pressure array, the sandwich structure is classic and saves wiring:

(²)

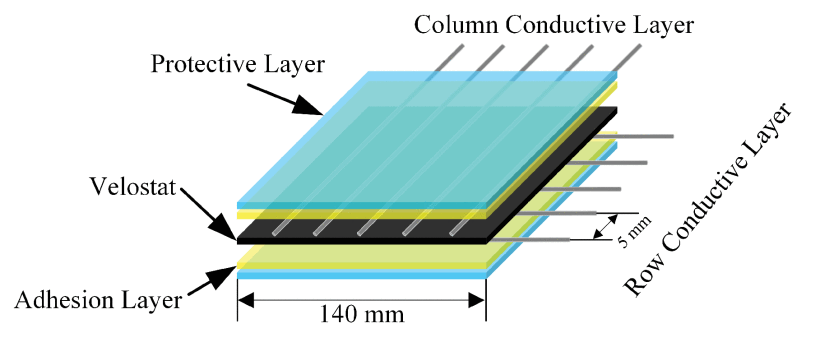

Top: conductive fabric strips (rows). Middle: one Velostat sheet. Bottom: conductive fabric strips perpendicular (columns). Each row–column crossing with Velostat between is one cell. M×N cells need only M+N wires.

To read each crossing: row scanning—drive one row HIGH, others LOW (critical to prevent ghost paths), read each column voltage, then next row.

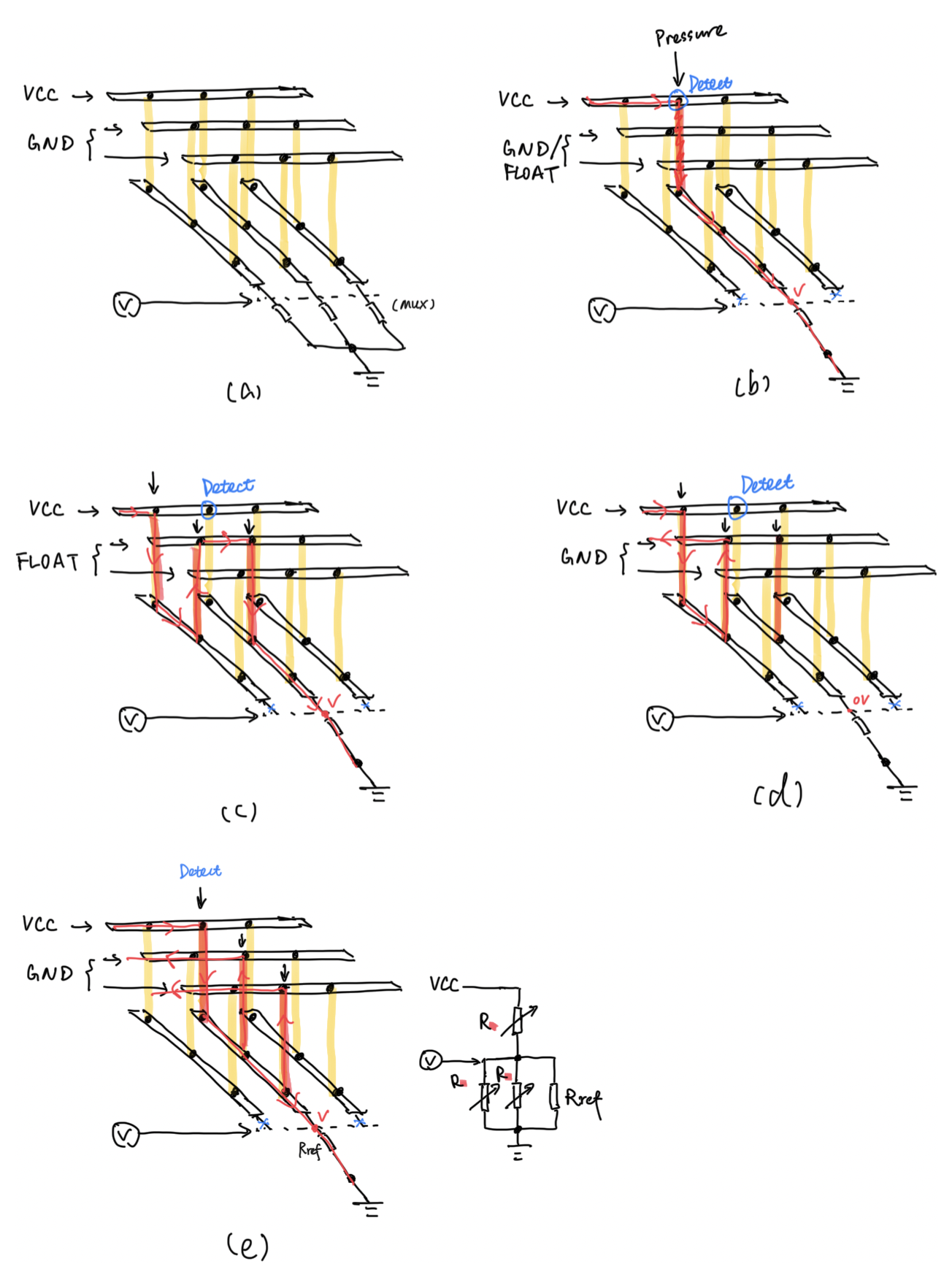

(a) Sandwich circuit: rows/columns; yellow = Velostat resistance; red = pressed (lower R).
(b) Single press: one column shows voltage; FLOAT or GND isolation both work.
(c) Multiple presses with inactive rows FLOAT: false positives (blue cell appears pressed).
(d) Inactive rows GND: false positives fixed.
(e) Inactive rows GND: crosstalk—multiple presses on one column parallel to ground, voltage lower than single press.

1.2 Array topology#

Standard Cartesian row/column scan—but SoundMat is circular, so polar coordinates are natural: concentric rings as one electrode set, radial slices as the other. Same principle, polar geometry.

We chose polar. Fewer cells can still localize “which annular region” well; Cartesian would need much denser grid for the same effect.

Sizing

From the bowl planter in SoundMat (4) Structural Design: nominal 24", measured inner ~22.7", sensor disk 22" (55.88 cm) (gap for LEDs). That disk is also the rigid board diameter.

Ring and slice counts: Each ring is a musical layer (instrument group). Four rings felt too few; beyond ten, fabrication cost rises—8 rings. Slices set loop “subdivision” in rhythm mode; count should be multiple of 2 or 6—32 slices fits a ~60 cm disk with 8 rings.

Final layout is not strict 32 slices everywhere: inner sectors shrink toward center, so rings 1–2 use 16 slices, aligned with outer rings.

Coordinate mapping: SoundMat (12) Software Design and Development (core/sensor/map.py)

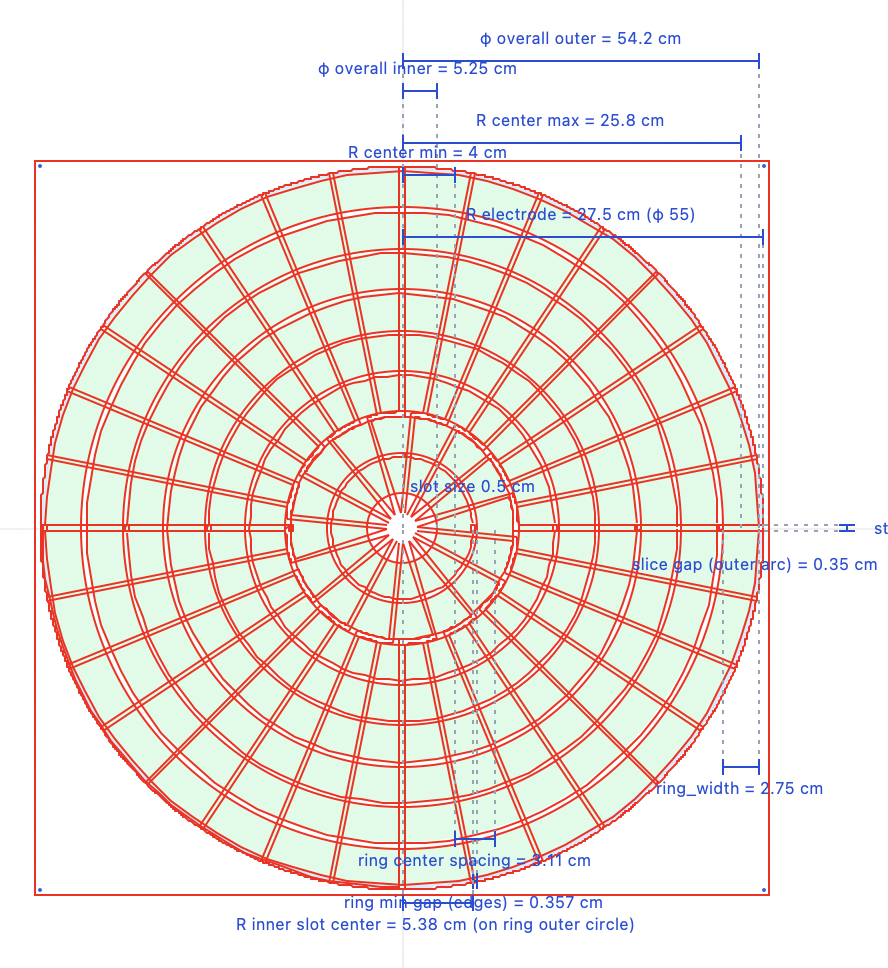

Ring/slice gaps minimized for sensing area—0.3 mm and 0.357 mm tested without severe crosstalk. Ring OD 54.2 cm, slice OD 55.0 cm. Detail:

Cell size ~2.75×1 cm to 2.75×5 cm—matches pebble contact.

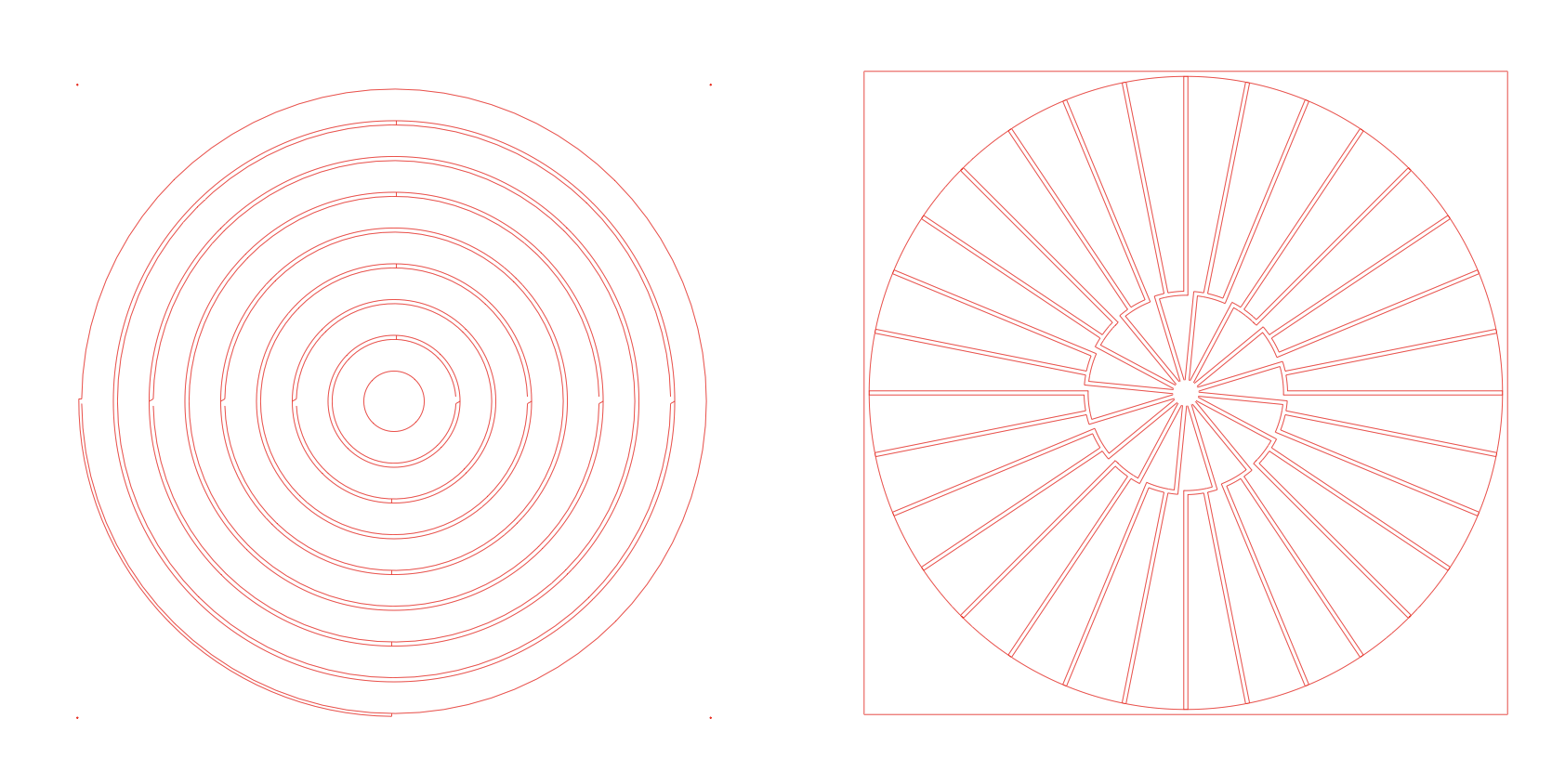

Final specs

Surface must stay flat, so electronics live below sensor/board. Rings use through-board holes: drill at ring positions, connect from below with conductive material. Slices route to the edge—no through-holes—connect from rim under the board.

In fabrication each ring gets a tail—conductive fabric through matching holes to the cavity. Slices use copper foil tape folded from edge to board underside for both electrical connection and securing the top sensor layer.

1.3 Automated sensor design tool#

We vibe-coded a tool in Cursor: enter parameters → auto-generate laser-cutting files (SVG/PDF).

Pipeline: parameters → geometry → canvas preview / SVG, PDF export

GitHub – mukimasta/sensor_design_tool

(Written May 2026)
